Overview
VegKing is an affordable and reliable processing line for bundling, labelling and trimming leafy vegetables and herbs. The VegKing line integrates automatic elastic binding (Cyklop AXRO binder), optional labelling and trimming/cutting to optimize the process from harvest to packaging.

Key product description

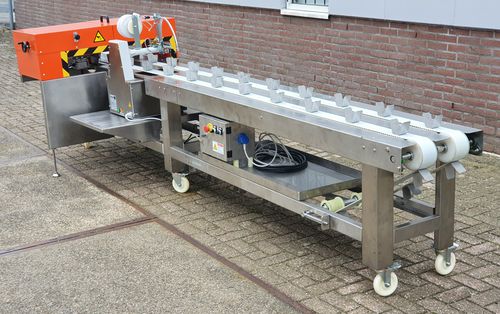

The VegKing processing and bundling line is VegHands' own design and is built under its direction. The line features two narrow conveyor belts that can be moved and interchangeable product holders so many types of products can be handled with one machine. Conveyor belt speed is infinitely adjustable and the timing of the Cyklop AXRO binder is adjustable. The frame is constructed entirely of stainless steel and the conveyor belts are food-graded.

Bundling and binder
When bundling with the Cyklop AXRO elastic binder, an elastic band is automatically placed around the bundle of products. The elastic is wound from a large roll, brought around the product, knotted and automatically cut off. Several types and colours of elastic are available and the tension of the elastic around the bundle is adjustable.

Performance and capacity
The standard version length is 1900 mm and is suitable for two people feeding the line; this configuration can tie approximately 2,500 bundles per hour. With the longer version, production of up to 4,000 bundles per hour can be achieved.

Suitable products

• Herbs: parsley, celery, rosemary, thyme, sage, mint, bouquet garni
• Leafy vegetables and other produce: spring onions, leeks, asparagus, carrots, long beans, rhubarb, soup parcels

Options

• Automatic labelling system (automatic label/etiket system)
• Saw blade for shortening/shortening bundles (trimming saw option)
• Extra Cyklop AXRO binder for two bindings (additional binder for 2 bindings)

Benefits

• Tight and reliable bundles
• Flexible for many product types through adjustable belts and changeable product holders
• Food-grade construction and stainless-steel frame
• Modular: bundling, optional labelling, optional trimming/cutting

Caractéristiques / spécifications techniques

• Model name: VegKing
• Manufacturer / trade name: VegHands
• Binding system: Cyklop AXRO elastic binder (automatic elastic band application, knotting and cut-off)
• Elastic: multiple types and colours available; adjustable tension
• Conveyor belts: two narrow, movable belts; speed infinitely adjustable; food-graded belts
• Frame: fully stainless steel
• Standard length: 1900 mm (2 persons feeding) — approx. 2,500 bundles/hour
• Longer version: up to approx. 4,000 bundles/hour
• Interchangeable product holders to handle multiple product types
• Optional modules: automatic labelling system, trimming saw, extra Cyklop AXRO binder for double binding
• Typical applications: bundling and labelling of herbs and vegetables (parsley, celery, rosemary, thyme, sage, mint, spring onions, leeks, asparagus, carrots, long beans, rhubarb, soup parcels)
